1200BPH 5 Gallon De-capper & Film Cutter
Production Capacity: 600-1200BPH(5 Gallon)
Main Material: High quality SUS304
Control Mode: Fully-auto type PLC control
Suitable Bottle: 3 gallon and 5 gallon barrael
Benefit of FESTA GMBG-1200 5 Gallon Bottle De-Capping & Film Remover
The GMBG-1200 fully automatic film cutting and cap removing machine consists of several parts, including the frame, film removal head, cap removal head, cylinders, and electrical control system. It works in conjunction with the conveyor chain system to achieve online continuous operation. The machine is made of high-quality 304 SUS stainless steel, making it corrosion-resistant and easy to clean. The film removal and cap removal heads are manufactured using third-generation custom mold steel, ensuring durability, protection of the barrel rim, and adjustable settings. The cylinders and electrical components are from well-known domestic and international brands (Airtac, Siemens, Schneider). The machine has an attractive appearance, compact structure, high production efficiency, stable and reliable operation, and a high degree of automation. It is a fully automated equipment for barrel filling production lines, integrating mechanical, electrical, and pneumatic systems. The device features a “no cap no de-capping” function and if the cap is not removed, the 5 gallon bottle will be rejected
Video
Description

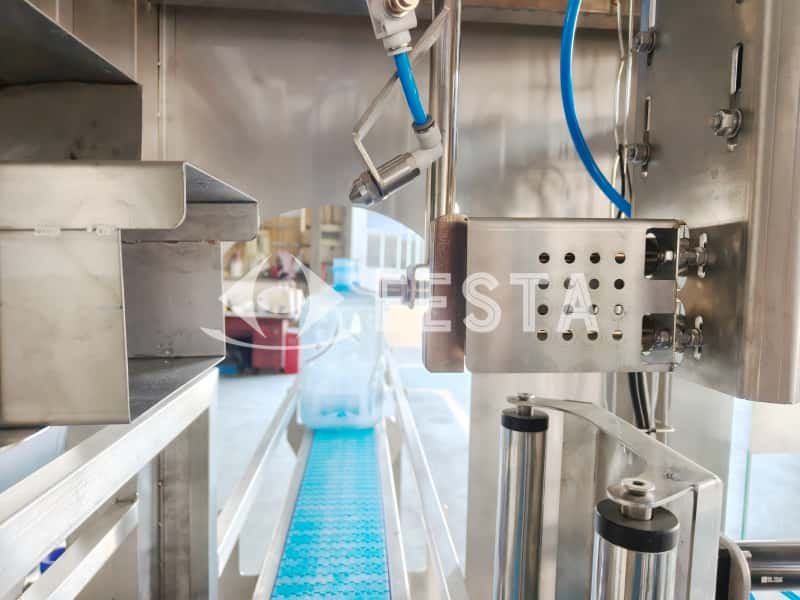

The 5-gallon empty barrels are conveyed via a conveyor chain into the fully automatic film cutting and cap removing machine. When a sensor detects a 5-gallon empty barrel, the bucket-blocking cylinder activates to block the empty barrel on the conveyor belt. The film is removed by a high-temperature air stream directed at the top of the barrel rim, while a constant-temperature airflow blows the label into the label collection port, completing the film cutting process. The empty barrel is then transferred to the cap removal station. When a barrel with a cap is detected, the corresponding cap removal cylinder activates and moves downward, covering the barrel cap with the cap removal head. The cap removal cylinder grips the barrel cap. The cap removal cylinder then moves upward to complete the cap removal process. Once the cap removal cylinder reaches the top position, it automatically releases the cap. Simultaneously, the cap blowing solenoid valve opens, blowing the removed cap into the collection container. The bucket-blocking cylinder activates, and the empty barrel with the removed cap is sent out by the conveyor belt for the next round of cap removal, with the process repeating until the entire film cutting and cap removal cycle is completed.
Data Sheet
Machine Model | GMBG-1200 |
Production Capacity | 600-1200 bottles per hour |
Suitable Container | 5 gallon barrel |
Suitable Cap | 5 gallon standard cap |
De-capping Head | 1 pcs |
Film cutting Head | 1 pcs |
De-capping Efficiency | ≥99% |
Cylinders Qty | 6 pcs(Airtac brand) |
Solenoid Valves Qty | 6 pcs(Airtac brand, equipped with silencers) |
Main Power | 0.8KW/ 3Phase 380v 50hz(Customizable) |
Air Consumption | 0.8Mpa 0.6m³/min |
Dimensions | 1250×750×2050mm |
Weight | 450kg |
