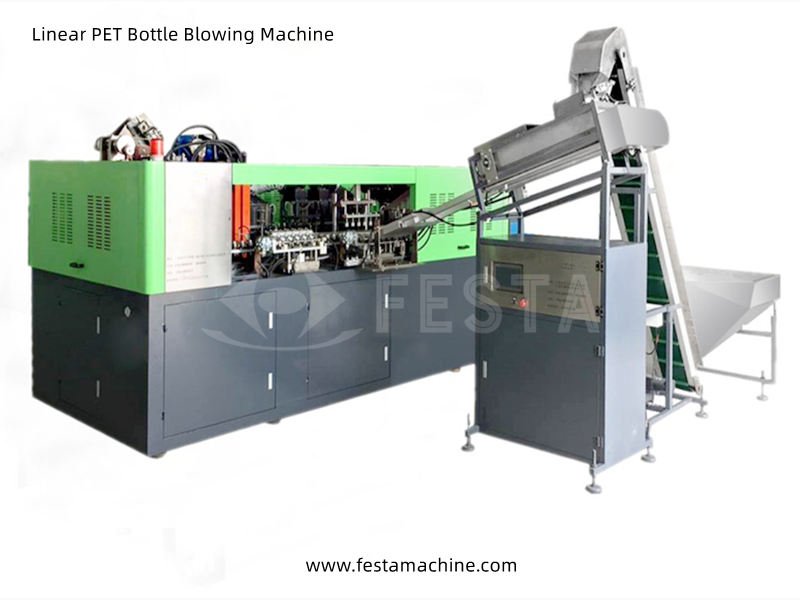

FST-6000 PET Blow Moulding Machine
Production Capacity: 5000-6000 bottles per hour
Control mode: All electric PLC control
Six cavity linear blow molding machine
Container: PET bottle 350ml -1liter
Benefit of FESTA FST-6000 PET Blow Molding Equipment
Exclusive use of special type mold-locking mechanism to achieve the linkage of the bottle body mold and the bottom mold, so that the machine can respond more quickly and smoothly, and make the overall structure of the machine more optimized and more efficient. In the aspect of realizing the energy saving plan of the bottle blowing machine, FESTA combines the international advanced scientific research achievements and the market demand to develop a high precision fully automatic manipulator, which realizes the change of the bottle preform to the rail and the overall energy saving effect.
- Adopt advanced microcomputer control system with stable performance.
- Automatic preform feeding by conveyor.
- The use of infrared lamp heating, strong penetration, bottle preform rotation heating, track rotation, uniform heating, fast and reliable.
- The width and height of the lamp and reflector in the heating zone can be adjusted to suit the heating of bottle preforms with different structures, and there is an automatic temperature discharge device to ensure the constant temperature of the baking channel.
- Every mechanical action has a safety self-locking device, and when a process fails, the program automatically switches to a safe state.
- Each action is driven by cylinder and does not use oil pump, which has the advantages of no pollution and low noise.
- The air path design divides the action and blowing up into three parts to meet the needs of different air pressure in bottle blowing and action.
- Adopt high pressure and gate type mold locking, strong clamping force.
- There are two operation methods: manual and fully automatic.
- The safe, reliable and unique valve position design makes the gas path clear at a glance.
- The production process is fully automated, which has the advantages of low investment, high efficiency, convenient operation, simple maintenance, safety and so on.
- Easy to install and start.
- The scrap rate of bottles is less than 0.2%.
Machine Model | FST-6000 PET Blowing Machine | |
Productivity | Depend on bottle size | 5000-6000BPH |
Bottle type | Body diameter | 30mm-80mm |
Height | 80mm-330mm | |
Neck diameter | 20mm-38mm | |
Bottle mould | Cavity | 4 cavities |
Mold thick | 300mm | |
Mold | 260*300*370mm | |
Main machine power | Electrical source power | 380v 50Hz 3Phase |
Rated Power | 60kw | |
Really working power | 20kw | |
Air source | LP air compressor | 2.0m3/min 1.0MPa |
HP air compressor | 3.2m3/min 3.0MPa | |
Cooling water | Cooling water | 35L/min |
Size | L*W*H | 4600*1850*1900 |
Weight | 3880kg | |
