Glass Bottle Carbonated Filling Machine BDXGF32-32-10-10
Production Capacity: 8000-10000BPH(500ml)
Main Motor Brand: ABB motor
Filling Temperature: 4-6℃ cold drink filling machine
Suitable Bottle: 330ml, 500ml, 1000ml glass bottle filling machine
Why Choose FESTA BDXGF32-32-10-10 Glass Bottle Carbonated Filling Machine
Traditional glass bottle carbonated beverage filling machines can only support one of the crown caps or aluminum caps. FESTA glass bottle filler machine has innovatively designed two sets of capping system, which are integrated in the same filling machine.
Customers do not need to buy two separate filler capper machines to meet two kinds of production needs. The production cost and investment cost of beverage enterprises are greatly reduced. In the meantime, can also save space.
BDXGF32-32-10-10 has the most advanced technology, the highest quality parts and the most stable performance.
Unlike the traditional 3 in 1 filling machine, we have added an additional set of capping machine, which allows users to choose between two different types of caps. For the enterprises that produce glass bottle carbonated drinks, the biggest headache is that there is a great market demand for both crown cap and aluminum cap packaging, but if you purchase two separate filler capper, you not only need a larger space, but also need additional personnel and a lot of money to buy machines. And our 4 in 1 glass bottling machine can solve this problem.
Empty Bottle Inlet
The glass bottle enters the filling machine through the rotation of the nylon screw rod. It can prevent bottles from crushing each other and exploding.
Bottle washing machine.
The star wheel passes the glass bottle to the steel clip, which hold the bottle mouth and flips the bottle so that the bottle mouth is pointed down at the high pressure nozzle. The nozzle spurts high pressure aseptic water to wash the inside of the glass bottle to achieve the purpose of cleaning the empty bottle.
Isobaric filling machine.
Carbonated drinks are beverage products filled with carbon dioxide gas. Generally speaking, the filling temperature is only 4-6 ℃. The empty bottle enters the filling area through the transmission of the star wheel, and the bottle mouth opens the filling valve under the action of the lifting cylinder. The filling machine first inflates the empty bottle so that the air pressure in the empty bottle is the same as that in the filler tank, and then the filling machine automatically opens the filling valve for isobaric filling. After filling to the set liquid level, the filling machine opens the exhaust valve to remove excess gas from the bottle. In this way, the whole filling process is completed.
This machine can be used not only for filling carbonated drink, carbonated juice, carbonated water, but also for producing sparkling water. It is also glass bottle beer filling machine.
Capping machine of crown cap.
Generally speaking, glass bottles of beer will use a crown cap, and some carbonated drinks will use a crown cap.
FESTA automatic crown capping machine adopts high-quality steel, accurate mold opening, precision machining and rigorous assembly, which makes the sealing effect very good.

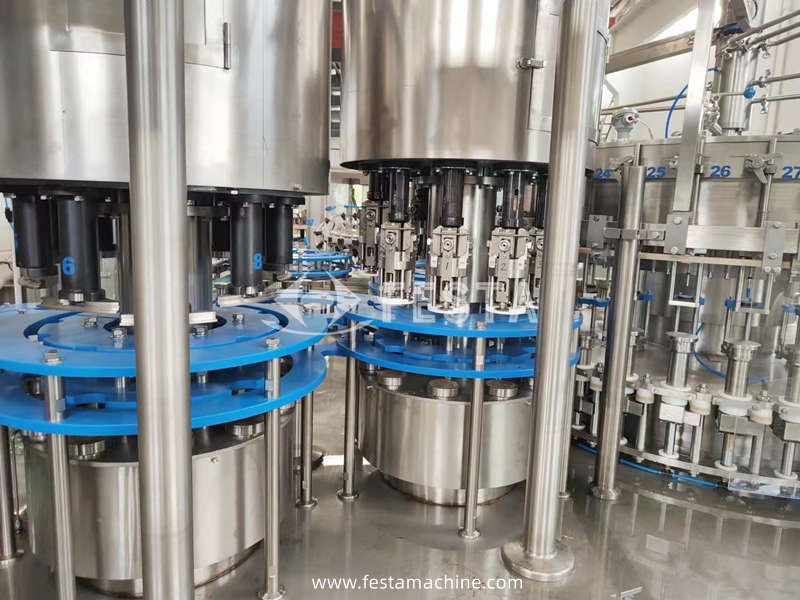

Capping machine of aluminum cap.
For some high-end carbonated drinks, the sparkling water will be covered with aluminum cap, such as Perrier water and Evian mineral water. The difficulty of the aluminum cap capping machine is that if the aluminum cap is completely wrapped in the mouth of the glass bottle through the capping head, and at the same time ensure the beauty of the thread, there can be no air leakage and liquid leakage. Combined with years of experience, FESTA aluminum cap sealing machine improves the mechanical structure of the sealing head, improves the machining accuracy of the parts, and perfectly solves this difficulty.
The most important thing is that we integrate the two capping machine into one machine without affecting each other.
