Automatic Bottle Washing Machine

Production Capacity: 1000-2000 bottles per hour

Operation Model: Fully-automatic

Quantity of Washing Nozzles: 12

Suitable Bottle: Glass bottle, PET bottle

Benefit of FESTA ZCP-12 Bottle Washing Machine

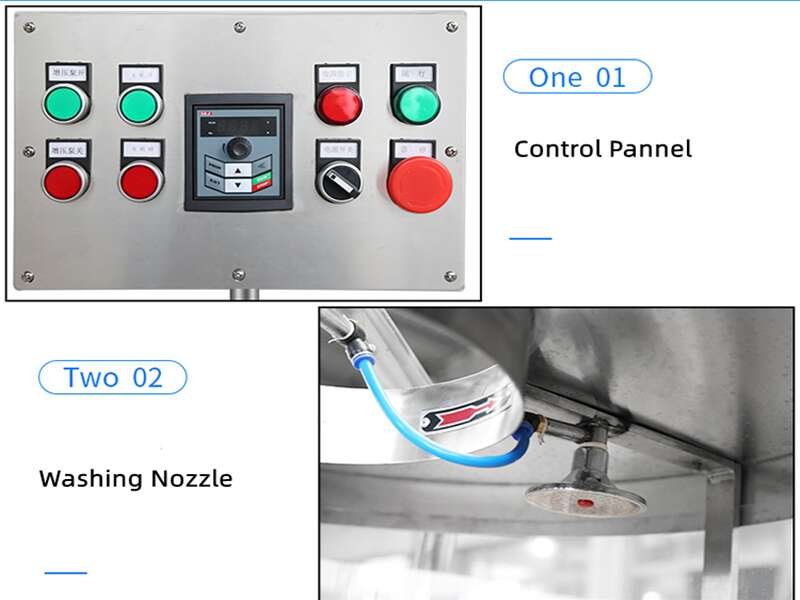

Control panel, the keys are clear and easy to understand. Nozzle, the bottle is cleaned by spray head outside, and the bottle is rinsed by nozzle inside, making the bottle cleaner. The positioning wave wheel adopts groove design to facilitate the rotation of the bottle without displacement. Bottle clamp, adopt elastic strong bottle clamp, grab bottle firmly, do not hurt the bottle. The drain pipe can discharge the sewage flushed through the bottle. Can be used for PET water bottles, glass bottles and other cleaning, high degree of automation.

ZCP-12 bottle washing machine 4

Description

ZCP-12 bottle washing machine 6ZCP-12 bottle washing machine 7

ZCP-12 bottle washing machine 5

  1. Multiple washing, high efficiency. With 12 flushing heads, 1000-2000 bottles can be flushed per hour, with large output, high efficiency and manpower saving.
  2. Powerful manipulator. The use of strong mechanical clamping hand, manipulator Cao Yong stamping, investment casting process, the use of national standard 304 stainless steel material, the middle with spur gear transition clamping form, so that the bottle, bottle turning, bottle stable and free, reliable performance.
  3. Automatic production, assembly line. The cleaning process of bottle feeding, turning over, flushing, draining and discharging can be completed automatically in one line. It can also be connected with the production line to realize unmanned operation. Greatly improve the production efficiency, bring considerable benefits.
  4. Continuously track bottle flushing. The bottle flushing force is large, THE time is long, the flushing effect is good, each clip is equipped with the control water spray device, does not on the bottle does not flush, save water economy.

Data Sheet

ZCP-12 bottle washing machine 9

Name

Automatic Bottle Washing Machine

Model

ZCP-12

Voltage

380V

Power

0.75kw

Frequency

50Hz

Working Pressure

0.2-0.3Mpa

Quantity of Washing Nozzles

12

Production Capacity

1000-2000BPH

Dimensions

1220×1220×1720mm

Weight

400kg

Video

Send Your Inquery

Related Machines

CGF18-18-6 Drinking Water Bottling Equipment
water filling machine
bcp 2s semi auto two cavities pet blowing machine
PET Bottle Blower

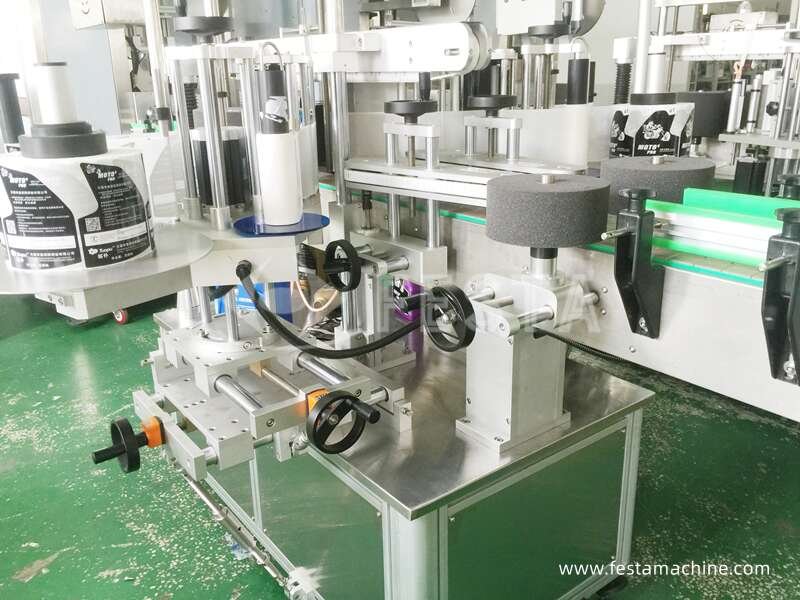

YX-200 sticker labeling machine 3
