12000BPH 6 Cavity PET Bottle Stretch Blow Molding Machine
Benefit of FESTA FST-GS-6S Pet Stretch Blow Moulding Machine
Utilizing all-electric variable-pitch servo technology, the 6-cavity blow molding machine can achieve a stable high speed of 2000 BPH per cavity. Compared to traditional equidistant blow molding machines, it can save more than 30% of energy consumption. It is compatible with bottles up to 2L, significantly reducing investment costs for water and beverage plants.
Video
Description
- The use of a large-capacity bottle preform hopper allows for the one-time storage of 3,000 to 5,000 preforms. The preform sorter equipped with a recycling system that returns excess preforms to the hopper.

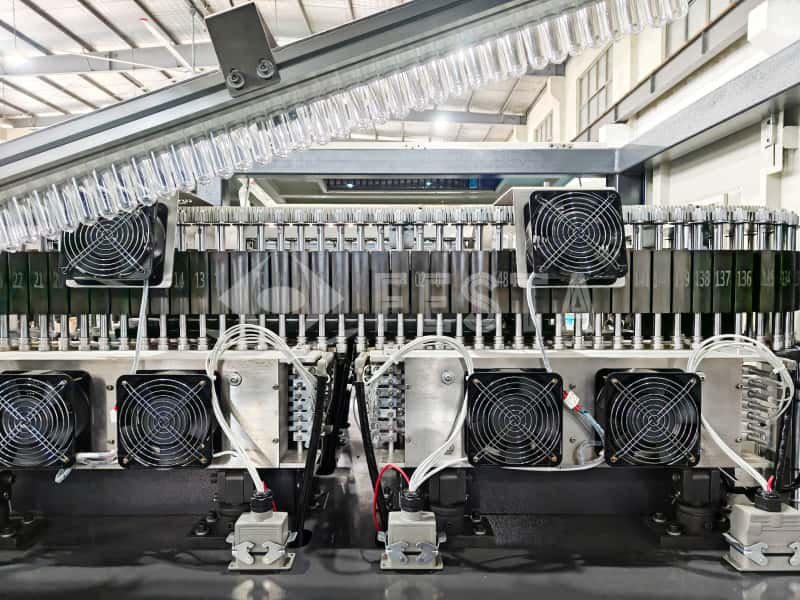

- The preform heating zone adopts a compact design, equipped with four preform heating ovens, each containing eight high-quality infrared heating lamps. The heating temperature of the lamps can be independently controlled, utilizing stainless steel reflectors combined with the self-rotation of the preform for heating, resulting in stronger penetration and more uniform heating.
- The three steps of the bottle blowing process—pre-forming, inflation, and blowing—each utilize three independent air storage tanks, allowing for separately adjustable air pressure requirements.
- A well-designed bottle neck cooling system ensures that the bottle neck does not deform due to infrared lamp heating while maintaining uniform heating of the preform.
- All functional movements of the bottle blowing machine are driven by cylinders and servo motors, ensuring precise operation. Parameter adjustments can also be completed via the touch screen.
- Each operation is equipped with a safety self-locking system, which automatically returns the equipment to a safe state in case of a malfunction
- The mold closing, stretching, shifting, splitting, and rotating are all driven by a servo motor system.
- The blow molding process can be configured via the touch screen, allowing one-click switching of parameters for different bottle types. The system can store multiple sets of blow molding processes for customer use.
Data Sheet
Specification | Unit | FST-GS-6S | ||
No. of Cavity | cav. | 6 | ||
Cavity pitch | mm | 120 | ||
Max. bottle volume | ml | 2000 | ||
Heating pitch | mm | 38 | ||
Preform holder | pcs | 150 | ||
Preform neck(inner dia.) | mm | <30 | ||
Preform height(max) | mm | 160 | ||
Bottle diameter(max.) | mm | 112 | ||
Bottle height(max) | mm | 320 | ||
Heating ovens | unit | 4 | ||
Infrared lamps | pcs | 32 | ||
Max. heating power | kw | <35 | ||
Specified power consumption | kw | 100 | ||
Voltage | V | 380V(50/60Hz) | ||
| mm | 5400X1800X2600 | ||
Theory production | 500ml(17g) | round bottle | 11000-12000pcs/h | |
