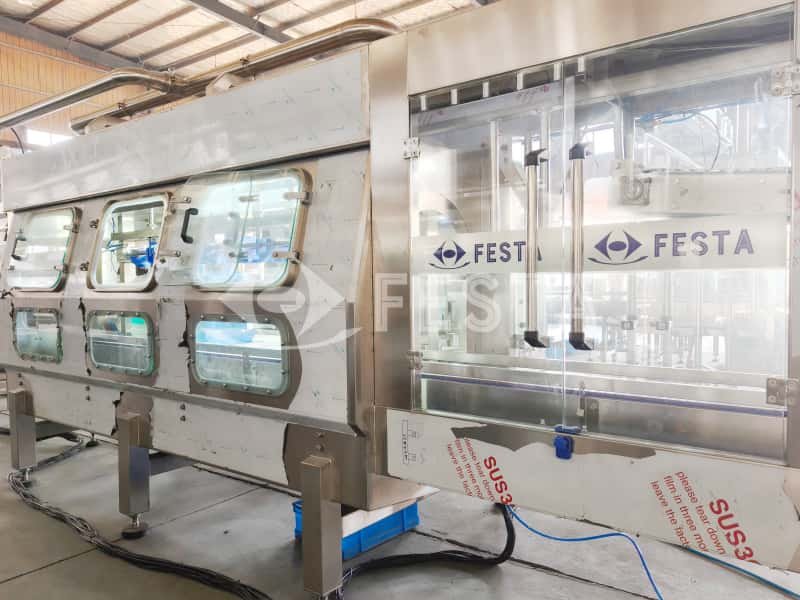

1200BPH 5 Gallon Water Bottling Machine
Production Capacity: 1200BPH
Main Material: SUS304
Control Mode: Auto control
Suitable Bottle: 5 gallon bottle
Technical Features of FESTA LGF-8 5 Gallon Water Filling Machine
- High-quality 304 stainless steel sheet is bent and laser-cut for high processing precision. It features glass doors and windows, silicone shockproof sealing strips, and an aesthetically pleasing design.
- The equipment utilizes variable frequency filling and pneumatic valves to achieve timed filling, ensuring stable operation. A filling buffer tank balances the output pressure and flow rate of the filling pump.
- Stainless steel chain continuous capping ensures stable and accurate cap hanging, smooth and stable sealing without container tipping, and a high success rate.
- Filling flow is controlled by a frequency converter, allowing for both high-speed and low-speed filling. UV germicidal lamps are installed in the container inlet sealing channel and filling area.
Video
Description
Equipment Composition:
The machine consists of a filling tank, variable-frequency filling pump, sanitary diaphragm valve, contactless filling valve, bucket clamping and positioning device, cap placement device, capping device, drive system, and electrical control system.
Working Principle:
Cleaned and sanitized buckets are conveyed via a belt through a sealed sanitary channel into the filling area. A staggered bucket-pushing mechanism positions each bucket at the filling station. Once the bucket is in place (with the next bucket entering the waiting area), a pneumatic cylinder activates the bucket clamping mechanism to descend and secure the neck of the bucket. The filling pump starts, and the filling valve opens to initiate the filling process. After filling for the preset high-speed duration, the filling valve closes, and low-speed filling continues until completion. Once filling is finished, the clamping mechanism releases the bucket, and the pushing mechanism ejects it from the filling station. The conveyor then transports the bucket through a cap placement unit where the cap is positioned, and finally through a capping head where it is automatically sealed, completing the filling and capping process.
Data Sheet
Machine Model | LGF-8 |
Production Capacity | 1200BPH |
Suitable Container | 5 gallon bottle |
Filling valve qty | 8 |
Water inlet pressure | 0.2Mpa |
Filling water consumption | 22-24T/H |
Power | 9.5KW |
Dimensions | 4500×2000×2350mm |
Weight | 1800kg |
FAQ
This machine is used for filling and capping 5-gallon barrels. The LGF-8 model can fill up to 1200 barrels per hour, making it the ideal machine for high-speed production.
Our 1200BPH 5 gallon filling machine employs linear shift filling technology. This machine connects to a fully automatic 5 gallon inner washing and sterilization machine via a closed conveyor system, ensuring the independence of both processes and resulting in higher production efficiency. Furthermore, for exporting machines from China to other countries, the separate filling machine can be directly packed into a standard shipping container, eliminating the need for FR containers and significantly reducing shipping costs for customers.
The eight filling valves utilize non-contact clean filling technology, and the filling capacity of each valve can be individually adjusted on the touch screen, ensuring that every bottle of mineral water filled by the customer has the same volume, and greatly saving water resources and avoiding waste.
